A strong, durable, OCLV Carbon MTB wheel with best-in-class impact strength, durability and resistance to pinch flats.
Warrantied for life
This durable carbon mountain bike wheel set keeps the good times rolling. It delivers performance on any trail and durability against any rocks you can’t avoid. The Line Elite 30’s robust rim profile delivers best-in-class strength and durability and resists pinch flats. Plus, simple tubeless set-up makes it easy to run lower pressure for more confidence and a smoother, faster ride.
All Bontrager carbon wheels are warrantied for life for the original purchaser and come with the added protection of Carbon Care. If your wheel sustains damage from riding within two years of ownership, we’ll replace them. It’s that easy.
Features
- OCLV carbon offers an optimised blend of weight, strength and durability
- The rim profile and hook bead design adds impact strength and helps prevent pinch flats
- A Rapid Drive 108 hub with 3.3 degrees of engagement for quick, confident energy transfer

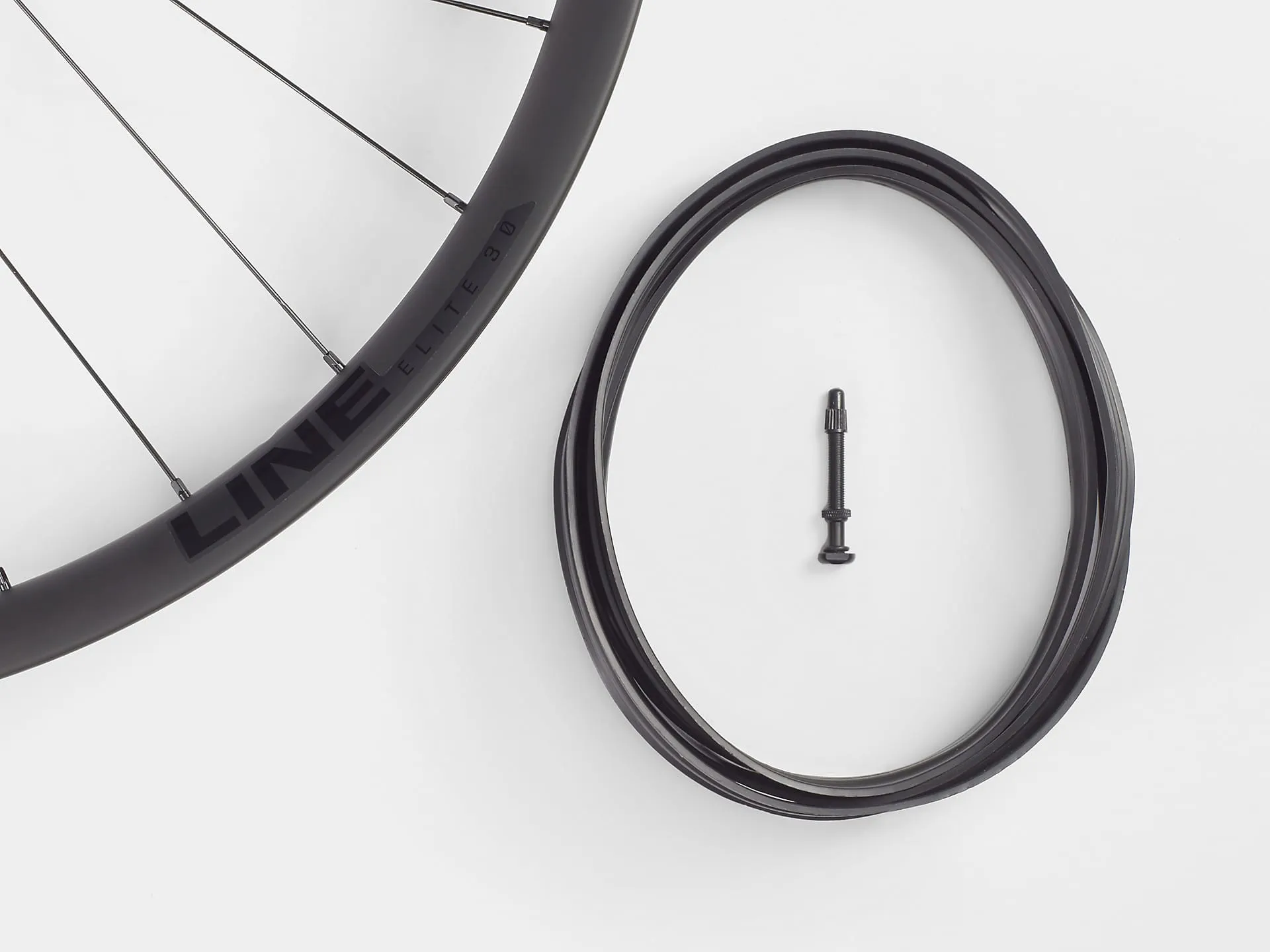

- Tubeless-ready (TLR) rims allow for quick upgrades to tubeless
- Boost 110/148, 28 front/rear Grand Forza 14/15G spokes with Alloy hex nipples
- 29 mm internal, 38 mm external width, 28-hole front/rear
- 6-bolt disc, SRAM XD: Shimano 10/11 and MicroSpline driver available separately
- Warrantied for life, no rider weight limit
Specification
| Size | Front, Not applicable | Rear, SRAM XD 11/12-speed |
|---|---|---|
| FT/RR | Front | Rear |
| Diameter | 27.5" | 27.5" |
| Type | Tubeless Ready (TLR)/Clincher | Tubeless Ready (TLR)/Clincher |
| Cassette compatibility | Not applicable | SRAM XD 11/12-speed |
| Hub width | 110 mm | 148 mm |
| Holes | 28 | 28 |
| Butting | 14/15/14 | 14/15/14 |
| Cross section | Round | Round |
| Brake type | 6-bolt disc | 6-bolt disc |
| Attachment | Thru axle | Thru axle |
| Nipple locking type | Alloy locking | Alloy locking |
| Valve | Presta | Presta |
| Material - Rim | Carbon | Carbon |
| Weight | 860g | 960g |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
