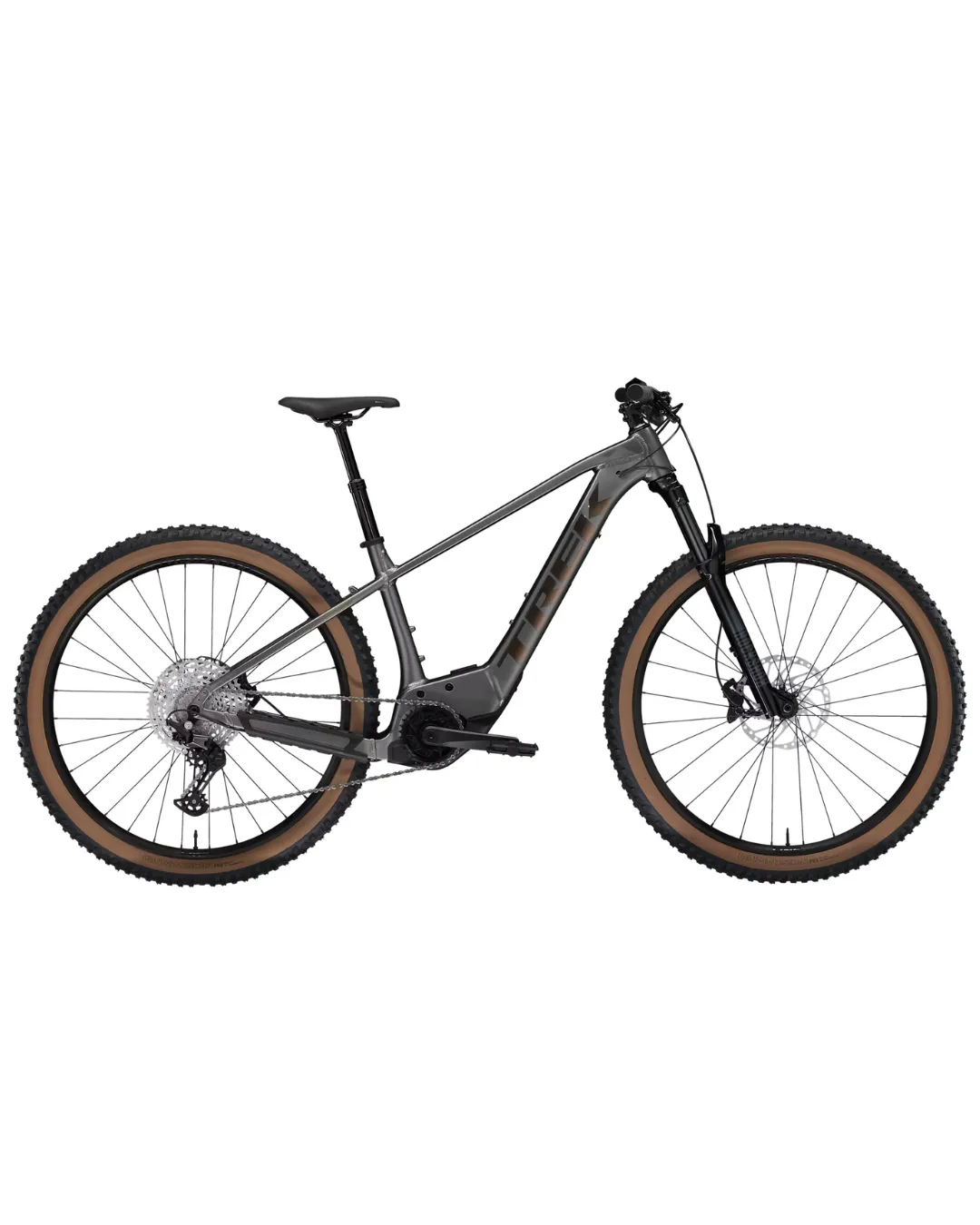

The Marlin 8 is an electric mountain bike that's ready to up your game on the trail.
Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to
go anywhere.
It's right for you if...
A boost of power is just what you're after, but you don't drain the bank account. You want plenty of gears for riding all kinds of trails, and the flat protection offered by wide 2.6 in tubeless-ready wheels and tyres.
The tech you get

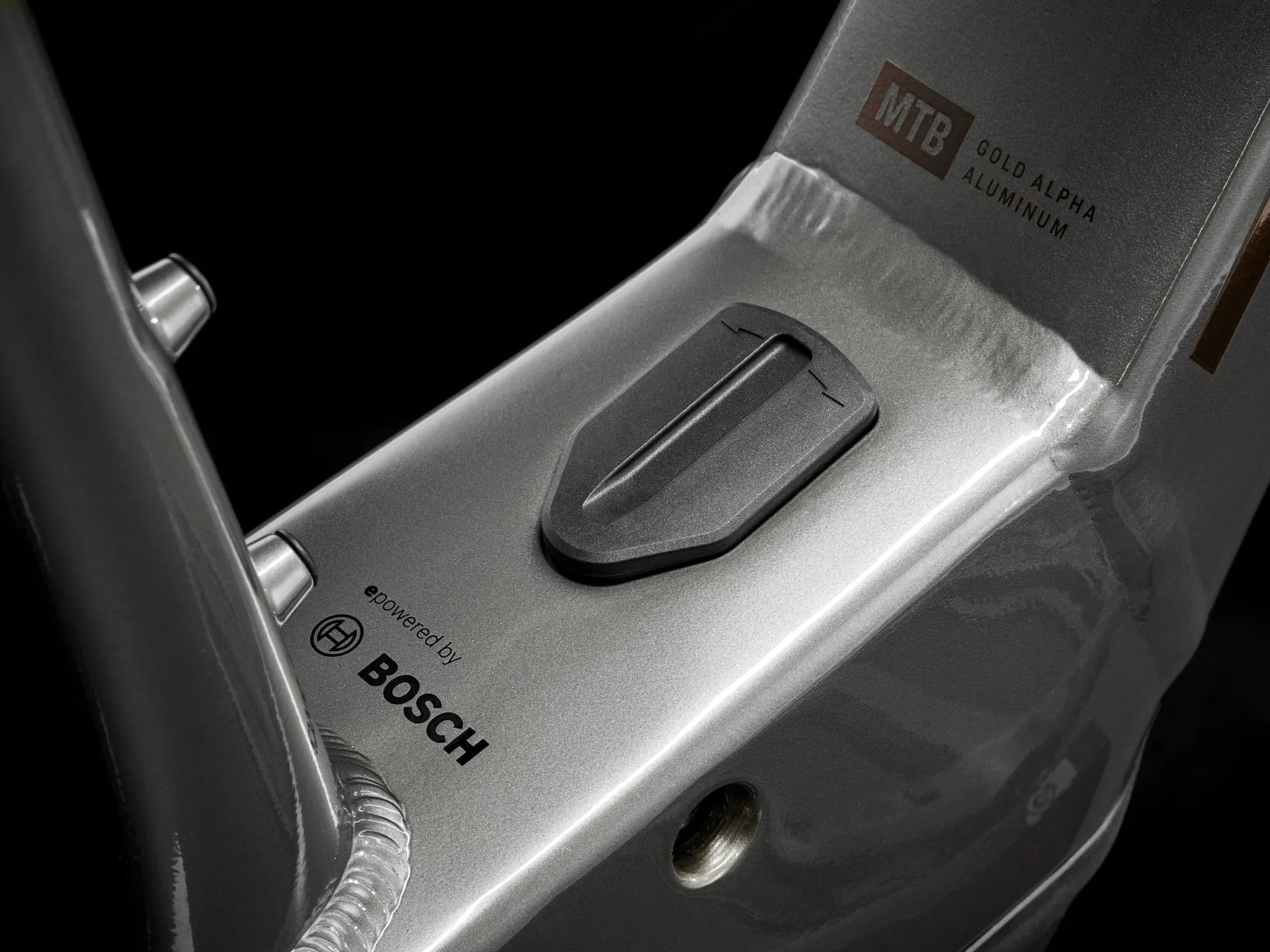

An Alpha Platinum Aluminium frame with real mountain bike geometry and a coil-sprung 120 mm fork. A reliable Bosch Active Line Plus 50 Nm drive system capable of assisting you to speeds of 20 mph/25 kph. A compact Purion 200 remote with built in display and 400 Wh Powertube battery. You get 12-speed Shimano Deore shifting, hydraulic disc brakes and wide, 2.6 in tubeless-ready wheels that boost grip and help prevent flats.
The final word
The Marlin is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.
Why you'll love it
- Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
- The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
- The Marlin is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes
Specifications:
*All specifications listed are subject to change without notice.* Accessories sold separately*

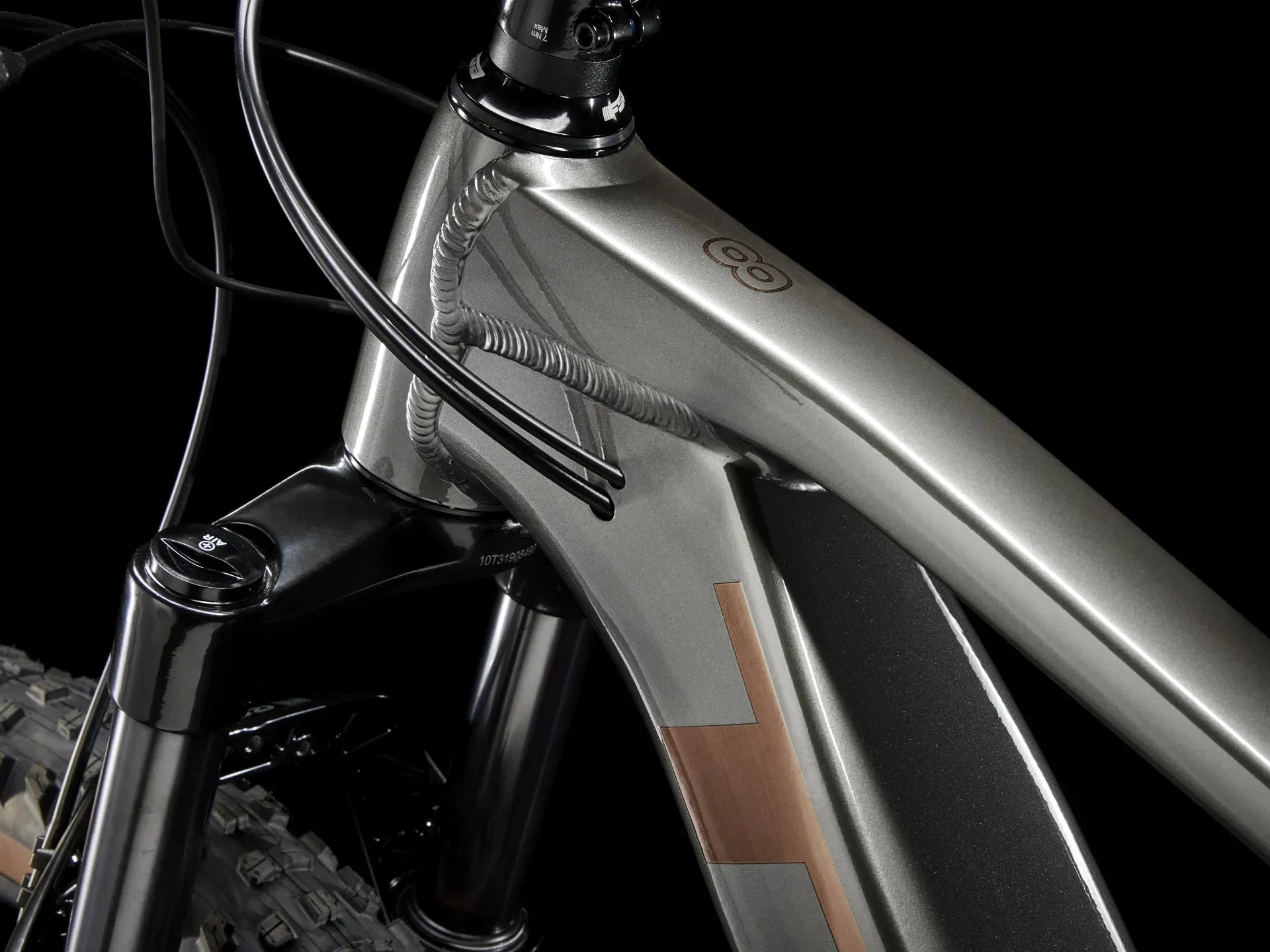

| *Frame: | Size: XS Alpha Platinum Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle |
| Size: S , M , L , XL Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle | |

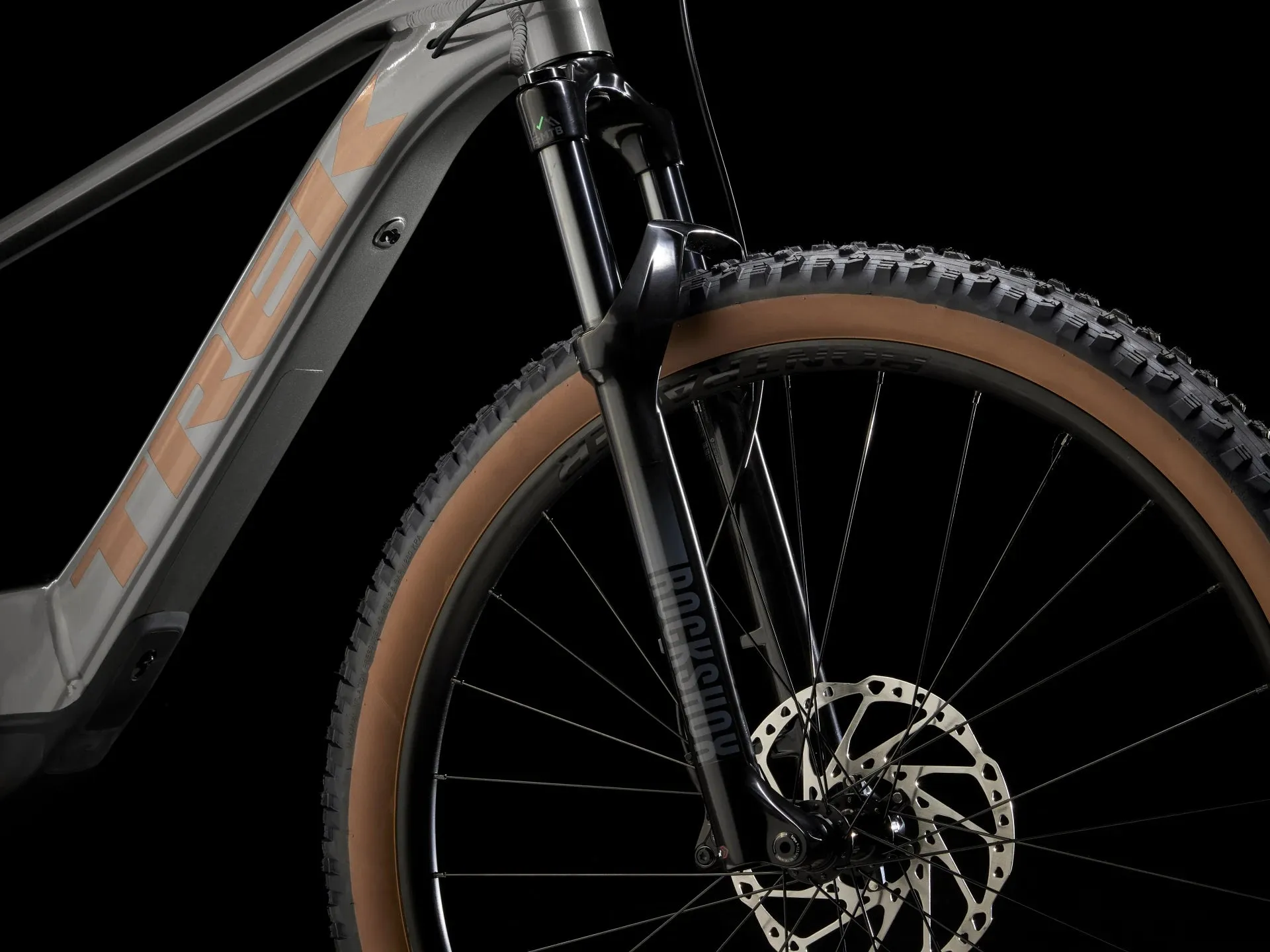

| *Fork: | Size: XS RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 100mm travel |
| Size: S RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel | |
| Size: M , L , XL RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 120 mm travel | |
| Hub front: | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| Hub rear: | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Skewer rear: | Bontrager Switch thru-axle, removable lever |
| Rim: | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| *Tyre: | Size: XS , S Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60" |
| Size: M , L , XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60" | |
| Tyre part: | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip: | Bontrager TLR |
| Battery: | Bosch CompactTube 400 Wh |
| Charger: | Bosch standard 2A, 230V, smart system |

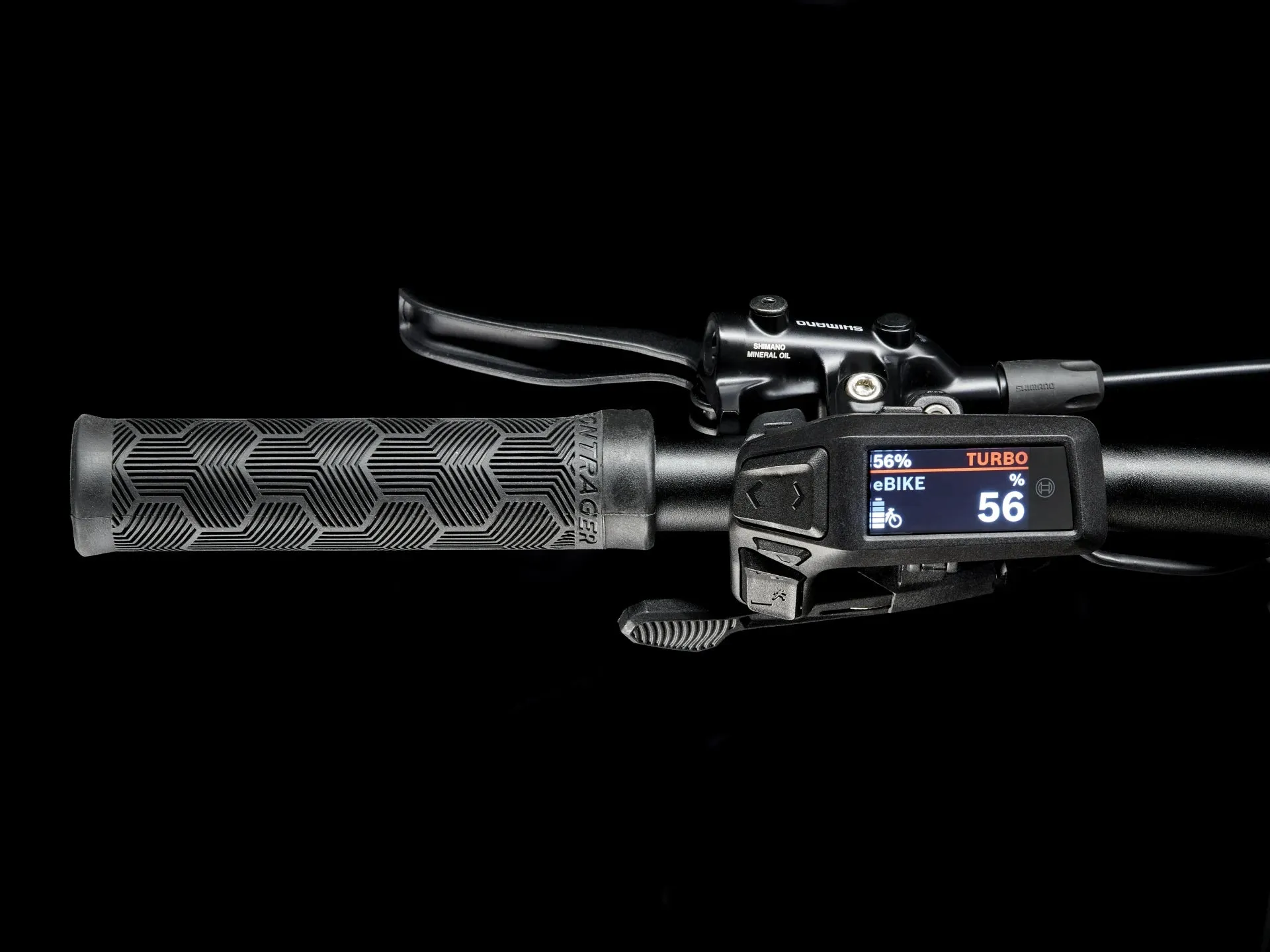

| Computer: | Bosch Purion 200 |
| Motor: | Bosch Active Line Plus, 50 Nm |
| Shifter: | Shimano Deore M6100, 12-speed |

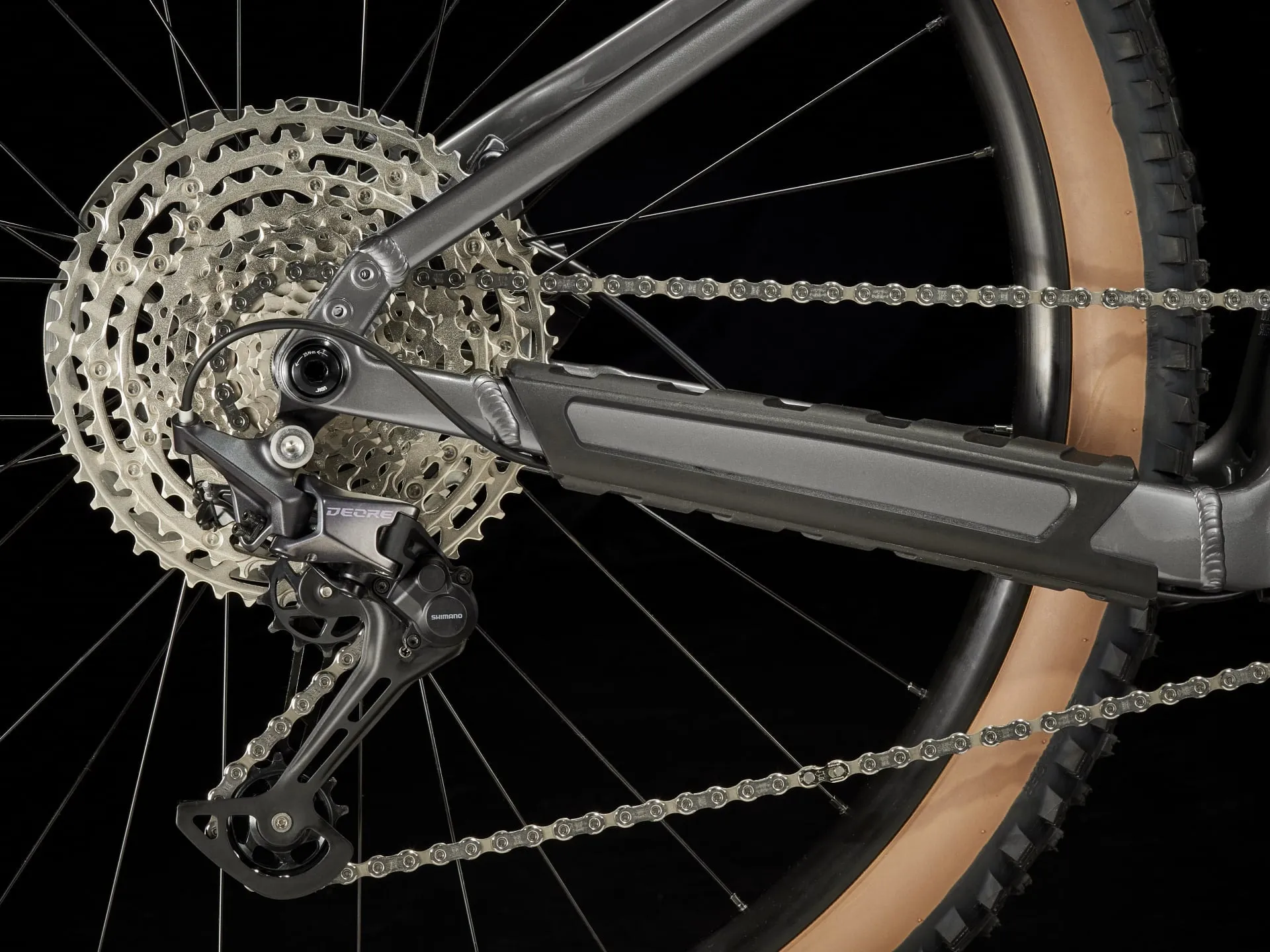

| Rear derailleur: | Shimano Deore M6100, long cage |
| Crank: | FSA CK-220, 165 mm length |
| Chainring: | FSA, 32T, steel w/guard |
| Cassette: | Shimano Deore M6100, 10-51, 12-speed |
| Chain: | Shimano Deore M6100, 12-speed |
| Pedal: | VP-536 nylon platform |

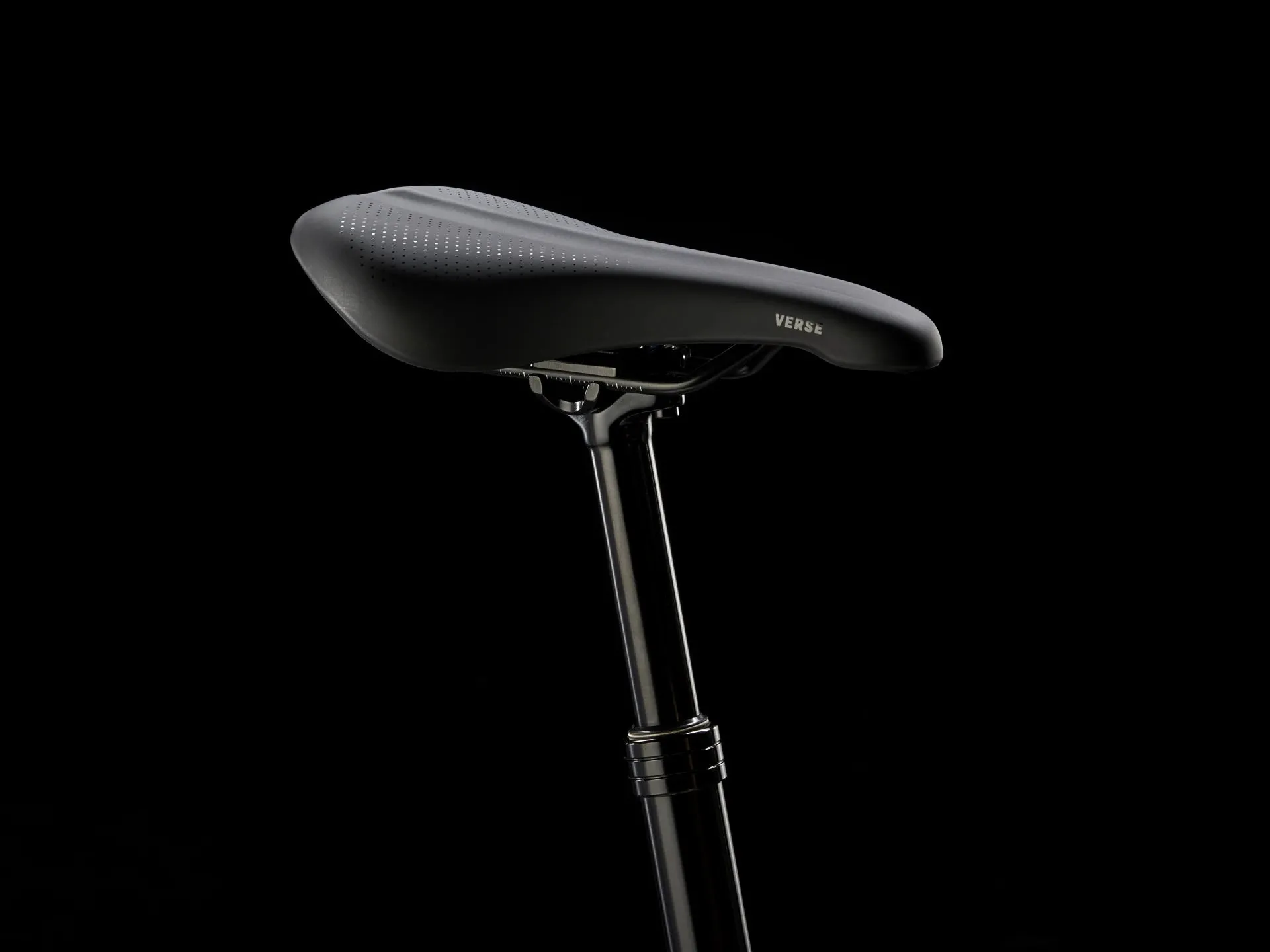

| Saddle: | Bontrager Verse P3, chromoly rails |
| *Seatpost: | Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M , L , XL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length | |
| *Handlebar: | Size: XS , S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
| Size: M , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width | |
| Grips: | Bontrager XR Trail Comp, nylon lock-on |
| *Stem: | Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length |
| Size: M , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length | |
| Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length | |
| Head set: | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
| Brake: | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor: | Shimano RT64, CentreLock, 203mm |
| Weight: | M - 21.28 kg / 46.92 lbs (with TLR sealant, no tubes) |
| Weight limit: | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
